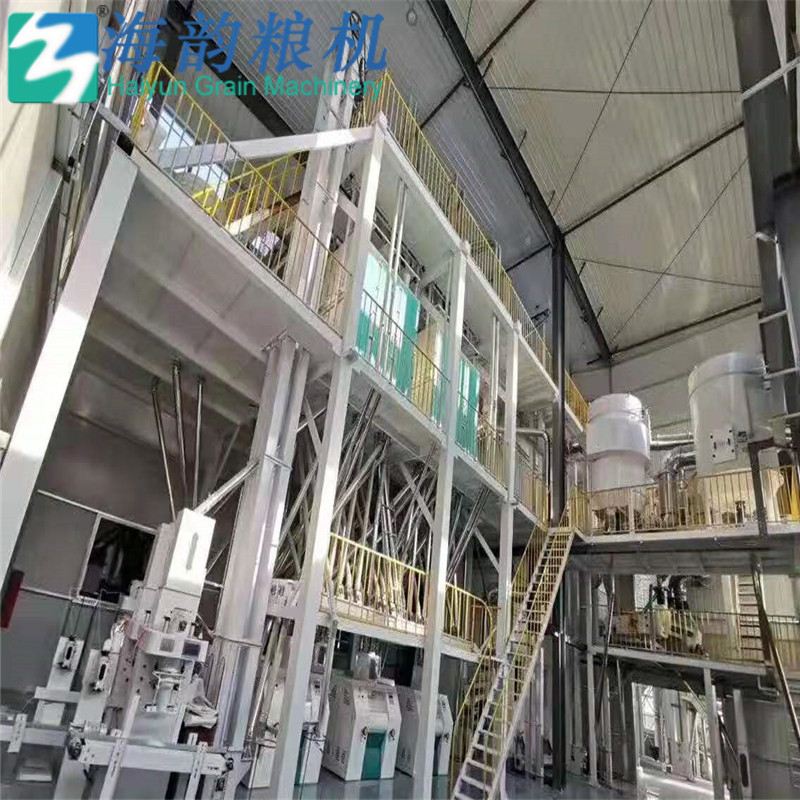

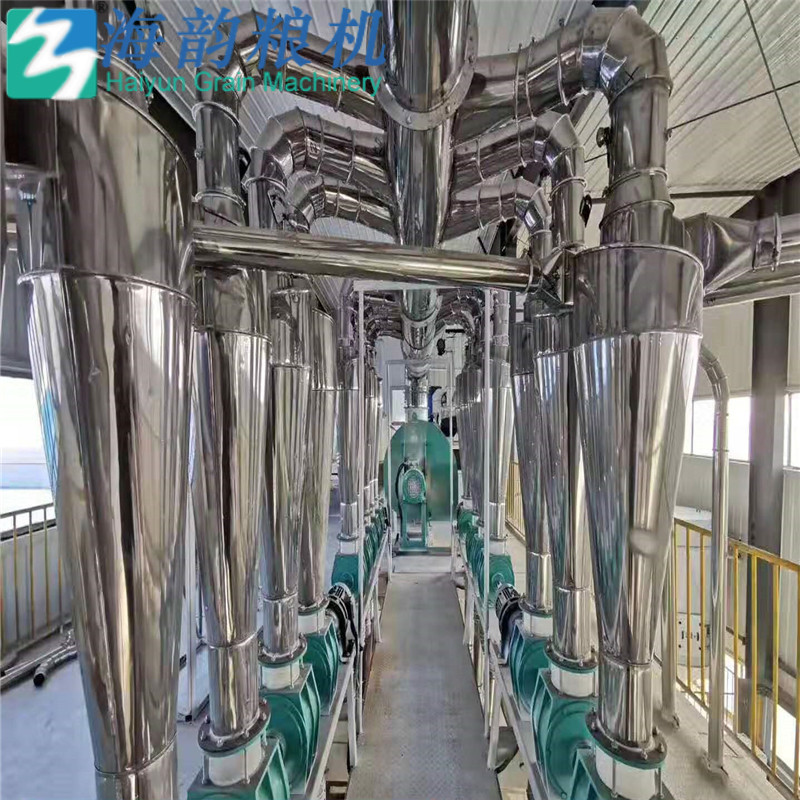

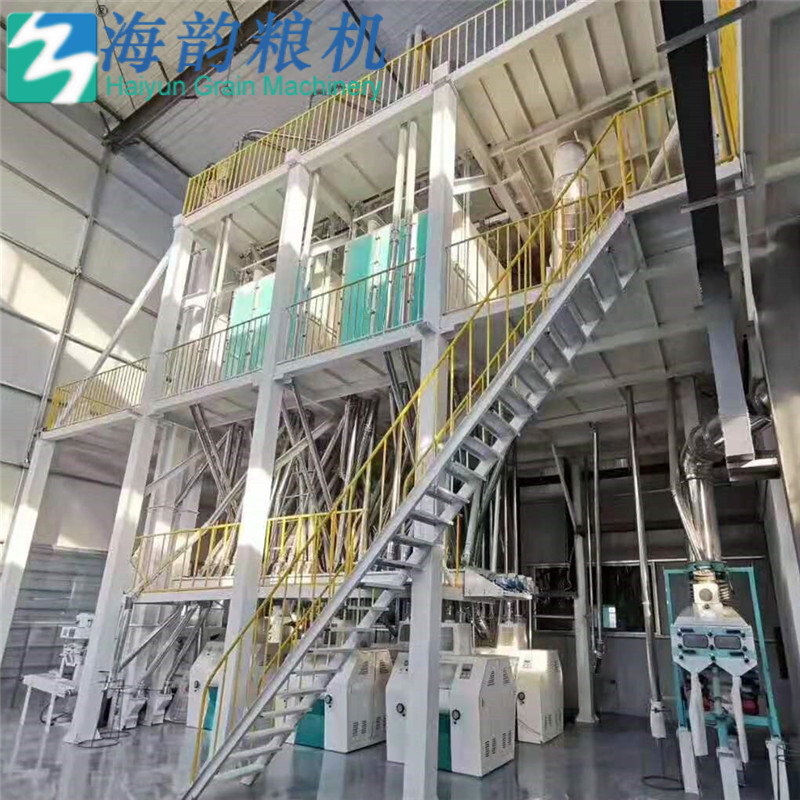

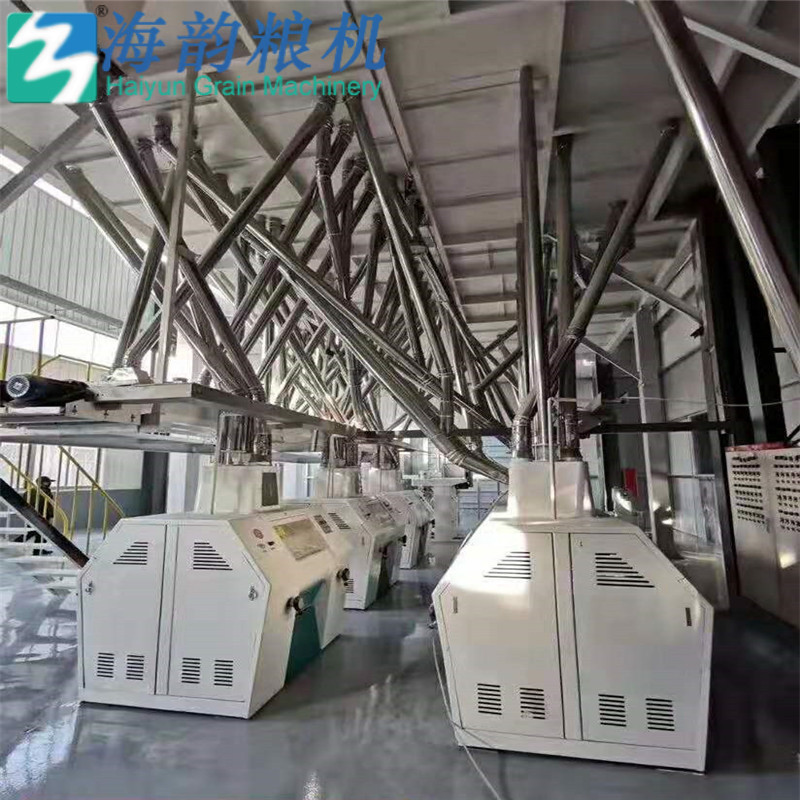

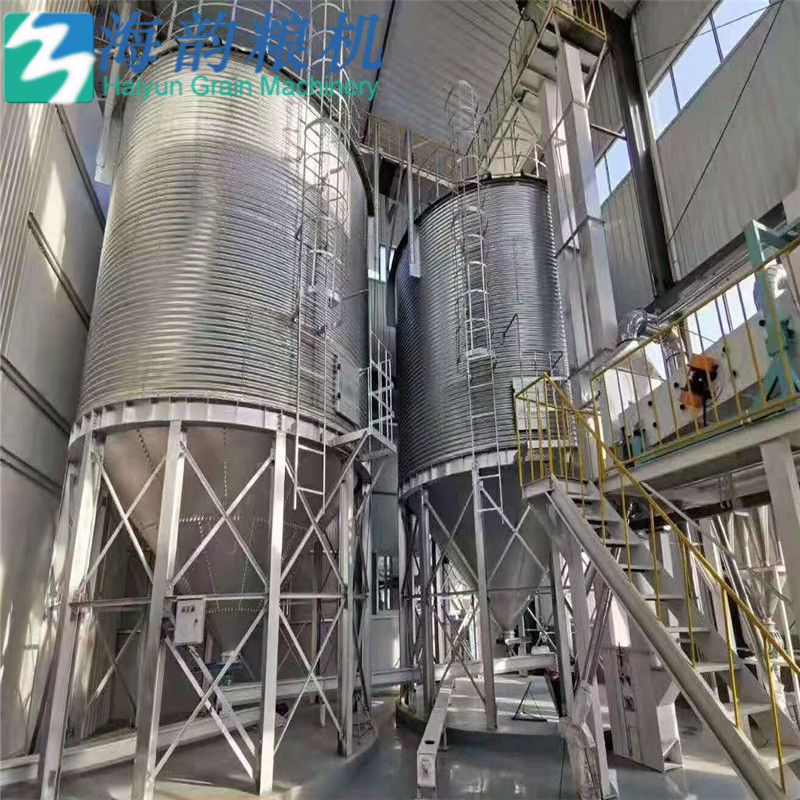

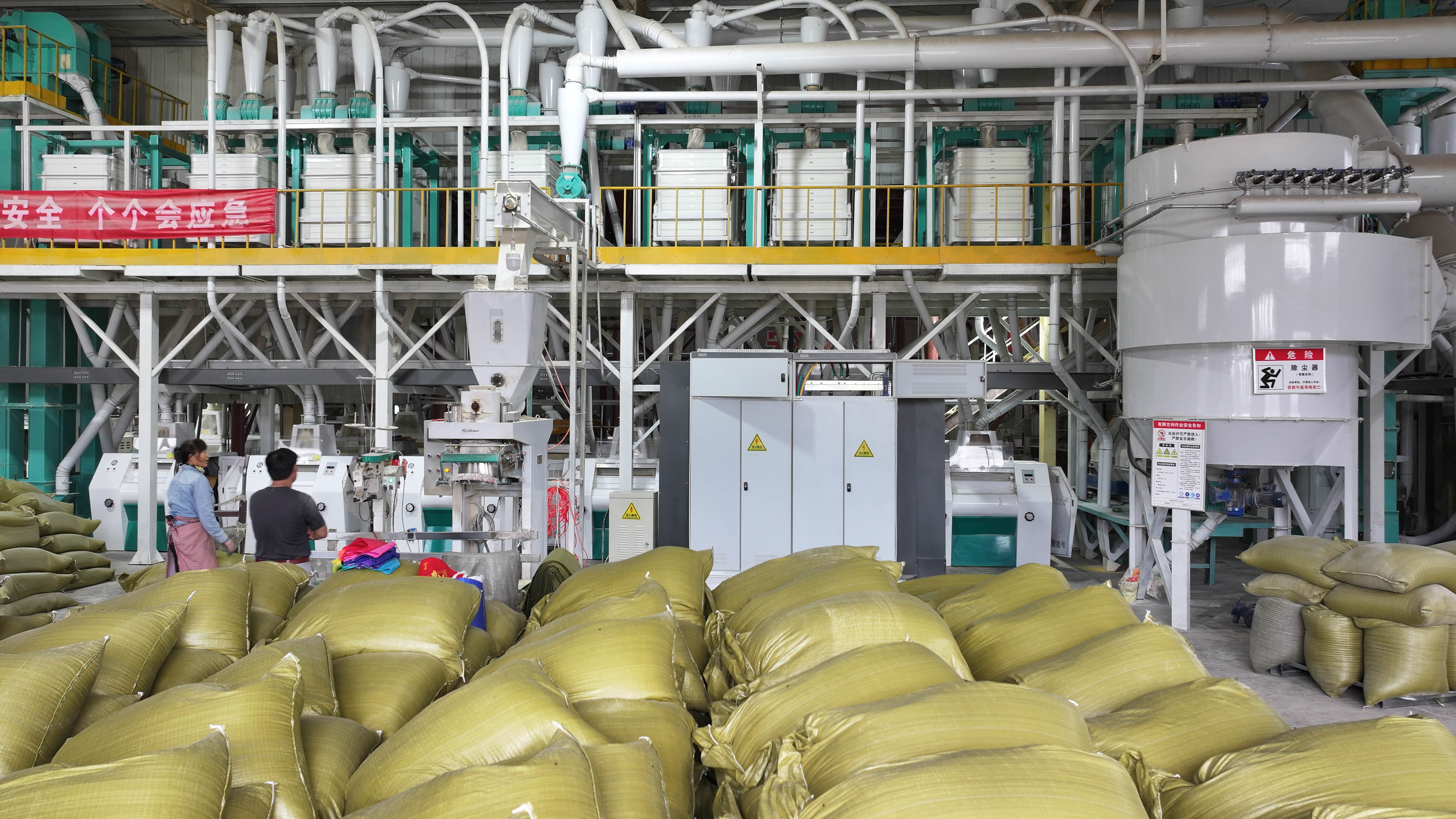

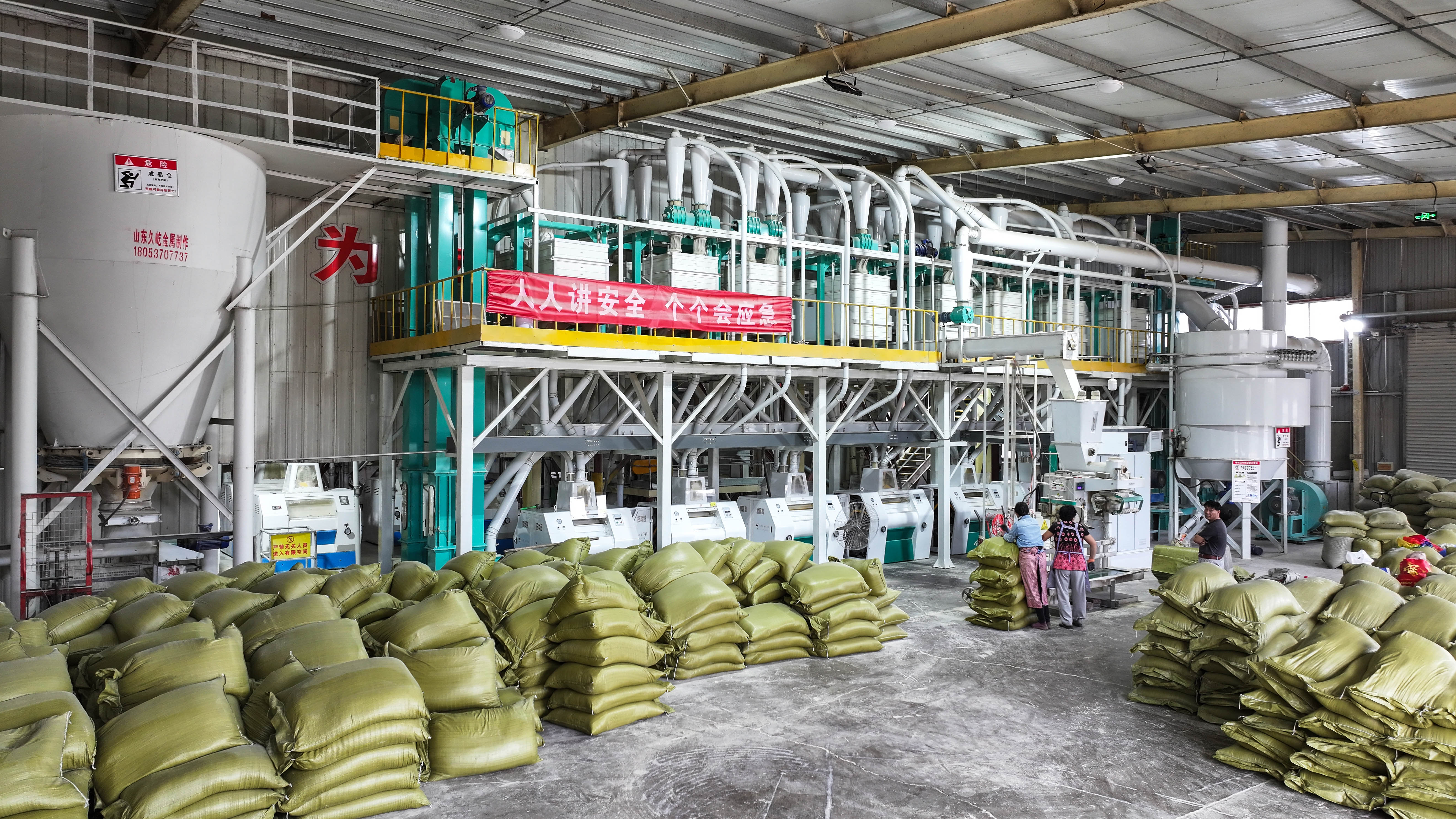

100tons of Corn flour and grit milling machine complete plant

Main technical parameter Details :

1.Input Capacity : 100tons/24hours for maize

2.Final products:

Maize flour: 50-60%,maize grit:15-20%.

3.Feed powder(bran,corn flour，black root ect):15-19%

4.  Finished Products Standard: both corn grit achieve or exceed the China National Standards or according customer local standard .

Noise and dust level in workshop follows the National Standards.

5.  Raw material mainly adopts flint corn; moisture rate within 17%.The bulk density is greater than 710kg/L, and the hard corn rate is more than 70%.

6.  Power matech: About 350kw,raw material power.

7.  Used under: Voltage: 380v, Frequency: 50HZ, Below an elevation of 1500m.

8.  the maize flour workshop whole equipment size:L40M*W7M*H10M, It is designed to be steel structure.

9. Container:8x40HQ

10. About the installation:

The installation is a charging service. The service includes is installation guide, test running and training the local workers. The buyer should be responsible for the technicians’ visa fee,round trip tickets and food and boarding, local transportation and medical insurance. In addition, the buyer should directly pay each technician 100USD per day,for the set of machine need to one engineer to install within 50-60days.Final installation need to according local status.factory engineer main for technical ,customer need to supply 4-6worker assistant with engineer .

10.1  For the flour milling complete set equipment, every shift needs 2operation technicians and 6 workers for operating packing system and conveying the packages.

11. Self-providing by customer: The necessary hoisting equipment and tools for installation, water supply,electricity source (transformer not less than 400kw,ect.)

12. The supplier should be responsible for design of factory layout, architectural design of main workshop building, guide of installation, test running and training the local workers (charging service), and supervision of construction (charging service).

The customer should be responsible for civil engineering according to the design requirements,carrying out installation and test running under guide of expert from supplier. The customer should provide necessary facilities and helps.

10-300TPD of Corn flour and grit milling equipment

Corn grits, flour, germ extraction equipment:

The series of equipment can produce 10T/D - 300T/D production of corn products. The process adopts dry or semi wet mixing finishing process design, peeling off embryos, can produce different size of low-fat corn grits, corn flour, corn bran, to ensure product quality and yield more authentic than the national standard, the complete set of equipment with advanced technology, stable performance, mature technology, and has the equipment is high grade, fine production, reasonable layout, low power consumption characteristics, at the same time according to the specific needs of users, to provide the reasonable design scheme .

Technical parameters:

Product types: corn grits, corn flour, corn germ, corn skin

Power consumption: 55-64kw/h

The rate of finished products: corn grits: 40%-50%; 25%-30%; corn: corn germ: 7%-8%; corn skin: 25%.

Product quality parameters:

Coarseness of corn flour: 40-200 mesh (adjustable)

Water storage type: less than 13.5%-14.5%

Sand content: <0.02%

Fat content: 0.4%-1.7%

Magnetic metal content: <0.003 g/kg

Appearance: bright, uniform grain grits, germ intact rate, fine powder.

HYYM- corn grits, flour extraction, germ product line

Product Introduction

Our company has got the certificate of ISO9001, so the quality of our machinery is guaranteed.

1 Manual or pneumatic drive mode will make you work easily.

2 Single automatic loading miller and complete set of flour mill are for your different choice, meanwhile various configurations for your adoption as your requirement (such as production capacity, manufacture scale, flour grade )

3 Safe and dependable design mode, reasonable installations by experienced engineers be supplied for you .

4 Friendly pre-sale service, sales service, prompt delivery, professional after-sale; your shall be enjoy the turnkey service.

Packaging&Shipping

Inner package: stretch film

outside package: standard wooden case or shipping containner

Delivery Details : About 100 days after payment

Our services

 We provide a turnkey project of our machinery, including special design, installation, commissioning ,training workers. All of our equipment contain one year free spare parts,and Quality guarantee period of one year.At the same time our company will carry on the lifelong service to our product.

We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.

FAQ:

Q1.What's your advantage? Why we choose you?

A:70 Years experience of design and manufacture grain machinery.We have the most professional techniques and team. More advantage in price.

Q2. Are you manufacturer?

Yes, we are manufacturer with more than 70 years' experience.(original:shandong flour machinery factory)

Q3: Can you show how the machine works?

A: Certainly, we will send you the Operating video & instruction to you together with machines, to help you use the machines better.

Q4: How can I know your machine works well?

A: Before delivery, we will test and adjust the machine working condition for you, then you can use directly when you get it.

Q5: Do you have ISO certificate?

A: For every model of machine, it has a ISO certificate.
